Xamarin.Forms plugin for iOS/Android to enable Shared Transition animations between two pages.
A shared element transition determines how elements that are present in two pages transition between them.There are three ways we can share code:
#if compiler directives.#if compiler directives as required to manage platform-specific requirements.Shared Projects are the default when creating a Windows Store or UWP app so you can write the same code for Windows Store and the Phone. I still think Microsoft was not quite right to set this as default but at least the code will most likely be so similar there would not be much difference between them and hence fewer compiler directives.
With a SharedProject you now create classes as per usual but if you want to do something platform specific you implement a compiler directive around the code. You may implement partial classes but those ifdefs can sneak in.
namespace Chat
{
public partial class App : Xamarin.Forms.Application
{
#if __IOS__
public App()
{
#else
public App(Intent screenshareIntent)
{
#endif
InitializeComponent();
#if __IOS__
MainPage = new NavigationPage(new SessionSelector());
#else
MainPage = new NavigationPage(new SessionSelector(screenshareIntent));
#endif
AppDomain.CurrentDomain.UnhandledException += CurrentDomain_UnhandledException;
}
I can agree that partial classes for Shared Projects can be a nice solution in a small project. However if you have multiple developers or anything more than a really simple app or demo project, maintainability of a Shared Project becomes less than pleasant due to lack of architectural control and struggling to find what is actually running on each platform.
Next a Shared Project suffers from issues when defining an assembly name. For example in xaml if you wanted to reference a control and reference an assembly name, each native project will have a different assembly name, so you either have to do some more ifdefs or OnPlatforms, or have to name each native project the same assembly name.
Benefits
#if __ANDROID__ , as discussed in the Building Cross Platform Applications document).Community.CsharpSqlite.WP7 in the Tasky sample for Windows Phone).Note: You may have previously heard of PCL’s, however with .NET Standard, it is now recommended to use .NET Standard Class Libraries, SCL’s.
SCL’s don’t come without some of their own headaches but they provide a great way to write code once, that can be used on multiple platforms, easily maintained and tested. When you write an SCL you don’t need to insert compiler directives to switch code depending on each platform, you select which platforms you will support by choosing which standard version to support.
Which version you choose, depends upon which platform you want to support. For Xamarin apps that need to support Android, iOS and UWP, I choose .NET Standard 1.3. You can find out more information in Microsoft’s .NET Standard documentation.
#if __IOS__.#if compiler directives to differentiate code among platforms.The most important characteristics of .NET Standard libraries are:
PCL it will become obsolete now. .NET Standard is the evolvement of the PCL libraries.
With PCL libraries you could target a number of platforms and only the functionality that was supported for all targeted platforms were available to you. Associated with each combination of platforms were the profiles. A profile was identified by two or three digits. Notable ones for Xamarin were 111 or 259. Read more on PCLs here: https://docs.microsoft.com/en-us/xamarin/cross-platform/app-fundamentals/pcl
.NET Standard is a specification of the APIs associated to it. If a platform supports a certain version of the .NET Standard, you are guaranteed that all APIs are available. This way, you can simply target a specific .NET Standard version and each platform that supports it will support your application. The .NET Standard specification has gained a lot of traction and is already more cross-platform than a PCL ever was. Most of the creators of NuGet packages are supporting it already and also Xamarin/Microsoft has replaced the PCL with a .NET Standard library in their templates. Read more on .NET Standard as a concept here: https://docs.microsoft.com/en-us/dotnet/standard/net-standard
So, if you have the possibility it might be wise to start moving to the .NET Standard library. That is, if you want to keep supporting your app and need new libraries coming in. If your app is fine the way it is, you can probably keep going with the PCL for a while. Converting is basically: change the csproj structure to the new structure. Retarget your library to netstandard and reinstall all the libraries you have installed, this time to download the .NET Standard compatible version. The last step might be a bit of a pain.
Coverting PCL to .NetStandard. https://smellyc0de.wordpress.com/2018/03/23/automatically-converting-pcl-to-net-standard-2-0-project/
Xamarin allows two different ways of creating applications, based on the amount of code reusability and customization.
The first approach is the Traditional Native Approach wherein platform-specific apps using Xamarin.iOSiOS and Xamarin.Android can be made. This way of creating apps is generally used when there is a lot of customization specific to the platform is required as it allows direct access to platform-specific APIs. Xamarin.iOS is used for iOS applications and Xamarin.Android is used to create Android applications.
The second approach is creating apps through Xamarin.Forms approach. Xamarin.Forms are used when there is a possibility of reuse of a lot of platform-independent code and the focus is less on custom UI. The platform-independent code is separated and kept in Shared Project or PCL or .NET Standard Library and Platform Specific projects consume this common code by including it.
Pages are Xamarin Forms generic representation of Cross Mobil Application Screens. A Page occupies most or all of a screen and contains a single child.
On IOS, the Page is mapped to ViewController, on Android, it is mapped to somewhat like Activity and on Universal Windows Platform, it is mapped to Page. Pages can be of several types, viz. Master /Detail Page, navigational Page, Carousel Page, Tabbed Page, Template Page, etc.
A Content Page is the most basic type of page which contains the content in a Stak Layout Grid Layout or Scroll View. The content is usually text or images
The Master-Detail Page is divided into two sections: Master and Detail. Master usually contains a list of items or Menu. Clicking on the item would show details about the item on the Detail Page
Navigation Page allows navigating from one page to the next by keeping a stack of all the pages. As the user goes deeper inside the app the pages get stacked one on top of the other and when the user tries to come back to the entry page thee pages are popped out in the reverse order of stacking
Tabbed Image allows viewing multiple child pages across the same page wherein each Tab represents a child page. One child page is active at a time and it is easier to navigate to the other Tab child page by clicking on the Tab
Just like Tabbed page, Carousel Page is also Multipage. It is similar to the gallery. Only the difference is Instead of clicking on the tab, the Carousal allows swiping gestures on the pages to navigate between the multiple child pages
When a user wants to show full mobile screen say for a Game or for showing splash Screen, Template Pages are used. They cover the entire screen area.

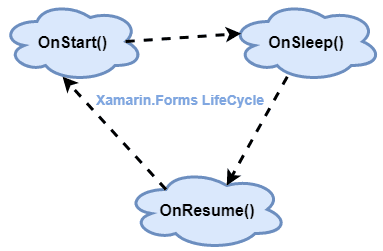

The lifecycle of an app contains the sequence of methods that are called since the time the app is launched until the time it is in the memory. The Lifecycle methods allow developers to write code for initialization or logic or transition so that the app components are initialized or show a specific behavior as and when they transit from one state to another. The developer may want to save state, initialize graphical components with data or reset apps state or free memory during these App methods.
The various life cycle methods of XamarinForms Apps are:
Custom renderers allow the Generic Xamarin.Forms control to be customized in behavior and look as per the platform they are going to be used on. This enables developers to give a native look and behavior to the otherwise Generic Xamarin.Forms Control.
Xamarin Forms controls are NOT rendered directly on the native platform. Every Xamarin.Forms control has an accompanying renderer for each platform that creates an instance of a native control. The properties from the Xamarin Forms control are translated across to the native control, then the native control is placed in the native layout, which then gets rendered by the platform.
Custom Renderers allow developers to customize the appearance and/or behavior of the control by writing their custom classes. Custom Renderers can be defined to have a custom behavior or appearance for one platform while allowing the default behavior on other platforms or they can be defined for each platform and provide customization for each different platform like iOS, Android, and the Universal Windows Platform (UWP). If instead of changing the complete behavior and appearance only some trivial changes are required then 'Effects' can be used as an alternative.
While developing apps with Xamarin.Forms, you will find that certain native platform-specific functionalities are not present in the Xamarin.Forms API. This is because of the generic nature of Xamarin.Forms. Xamarin.Forms allow apps to call into platform-specific functionality from shared code. This functionality enables Xamarin.Forms apps to do anything that a native app can do. You need to necessarily define an interface and write platform-specific implementations of that interface in the platform project. Dependency service will find the correct implementation of that interface in the various platform projects. Xamarin.Forms apps need four components to use DependencyService:
The structure of the application is explained by the following diagram:
These Days, We could see that coming to a new fashion for gift scratch card which is using many apps like Phone Pay/ Google Pay.
To create a scratch screen in xamarin forms for cross-platform the two basic things we need are the “animation effects” and “touch Events” in Xamarin.
Forms include its own animation infrastructure that’s straightforward for creating simple animations, while also being versatile enough to create complex animations.
In our requirement we need more than this, so we are a third party library ”Skiasharp“.SkiaSharp for Xamarin.Forms are packaged as a NuGet package. After you’ve created a Xamarin.Forms solution in Visual Studio or Visual Studio for Mac, you can use the NuGet package manager to search for the SkiaSharp.Views.Forms package and add it to your solution. If you check the References section of each project after adding SkiaSharp, you can see that various SkiaSharp libraries have been added to each of the projects in the solution.
In our application, we are using skiasharp for making a rectangle on a canvas and will provide a scratch effect by using SKPath property. Now as we know we have native touch events on each platform for android and iOS but here we using a third-party library “TouchTracking“to provide touch events for cross-platform which will be applicable to android as well as iOS also.
TouchEffect not work in ios with a stacklayout. it is Known issue in TouchEffect.
So for IOS we have to set below Bold Line Code. Sample Code have added this already.
public override bool FinishedLaunching(UIApplication app, NSDictionary options)
{
global::Xamarin.Forms.Forms.Init();
LoadApplication(new App());
var _ = new TouchTracking.Forms.iOS.TouchEffect();
return base.FinishedLaunching(app, options);
}Download Full Source code : Link Other Sample Link
