Masked Entry in Xamarin.Forms

A mask on an entry field is way to format the input into something more human readable. For example, a phone number may look like +61 400 555 555, or (555) 555-555. There are many ways to implement a mask. For maximum configurability, you would use Regex, however for most simple cases, we can implement something much easier.

Behavior

The easiest way to implement a mask, is through a Behavior. This code will set the char positions that each mask character is meant to be located at. For example, in this code, we will choose X as our special character. Hence a mask of (XXX) XXX-XXX, will mean that spaces, brackets and dashes will all be included as part of the non-user typed entry.

public class MaskedBehavior : Behavior<Entry>
{
    private string _mask = "";
    public string Mask
    {
        get => _mask;
        set
        {
            _mask = value;
            SetPositions();
        }
    }

    protected override void OnAttachedTo(Entry entry)
    {
        entry.TextChanged += OnEntryTextChanged;
        base.OnAttachedTo(entry);
    }

    protected override void OnDetachingFrom(Entry entry)
    {
         entry.TextChanged -= OnEntryTextChanged;
         base.OnDetachingFrom(entry);
    }

    IDictionary<int, char> _positions;

    void SetPositions()
    {
        if (string.IsNullOrEmpty(Mask))
        {
            _positions = null;
            return;
        }

        var list = new Dictionary<int, char>();
        for (var i = 0; i < Mask.Length; i++)
            if (Mask[i] != 'X')
                list.Add(i, Mask[i]);

        _positions = list;
    }

    private void OnEntryTextChanged(object sender, TextChangedEventArgs args)
    {
        var entry = sender as Entry;

        var text = entry.Text;

        if (string.IsNullOrWhiteSpace(text) || _positions == null)
            return;

        if (text.Length > _mask.Length)
        {
            entry.Text = text.Remove(text.Length - 1);
            return;
        }

        foreach (var position in _positions)
            if (text.Length >= position.Key + 1)
            {
                var value = position.Value.ToString();
                if (text.Substring(position.Key, 1) != value)
                    text = text.Insert(position.Key, value);
            }

        if (entry.Text != text)
            entry.Text = text;
    }
}

This code, will also limit the amount of text you can enter, up to the mask.

Apply Mask

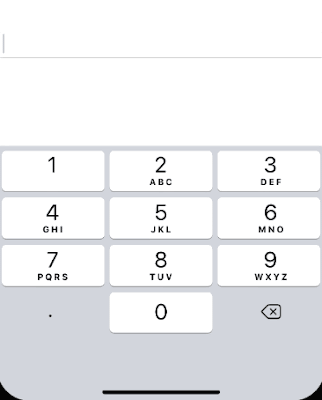

Now you want to apply your mask to an Entry element. Here I have added the MaskedBehavior, and added a mask of (XXX) XXX-XXX.

<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:behavior="clr-namespace:Enterprise.Behaviors"
             x:Class="Enterprise.View.Features.Main.MainView">
    <ContentPage.Content>
        <StackLayout VerticalOptions="Center">
            <Entry Keyboard="Numeric">
                <Entry.Behaviors>
                    <behavior:MaskedBehavior Mask="(XXX) XXX-XXX" />
                </Entry.Behaviors>
            </Entry>
        </StackLayout>
    </ContentPage.Content>
</ContentPage>

The mask can be anything you want, with the X as the character that the user types in.

For other approach using dell you can also get Code and Details(with DLL on Nuget) you can also check the link on GitHub for more details :  Link
